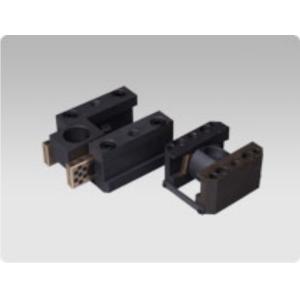

    Loose Core Injection Mold Components punch SCZA Slide Unit Inclined Pin Fixing Type

    Ask Lasest Price
    Brand Name : INWAY
    Model Number : SCZA
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 tons/month
    Delivery Time : 5 work days or based on quantity
    • Product Details
    • Company Profile

    Loose Core Injection Mold Components punch SCZA Slide Unit Inclined Pin Fixing Type

    Loose Core Injection Mold Components punch SCZA Slide Unit Inclined Pin Fixing Type


    punch Standard Oil-Free Slide Units For Loose Core -Standard/Fixed Type- (Part Numbers)


    Features of Oil-free Slide Units for Loose Core


    ● Refer to the above table for dimensions of the inclined pin's edge cutout and screw size (PM). The counterbore on the inclined pin holder is made in a size that accommodates for a socket head cap screw with a spring washer.

    ● The unit can be mounted on an ejector plate in two ways :(1)Screwing into the ejector plate, or (2)Screwing into the unit. For (2) use a socket head cap screw that corresponds to BM in the Bolt hole dimensions table. For (1) select a rank below the corresponding BM (i.e., M6 screw when BM is M8).

    ● Prior to mounting, apply * grease to the unit in order to protect it from wear during initial running-in.

    ● If the stroke is long, it is recommended that you use a bushing that supports the inclined pin. X P.675


    ItemComponentsParts NameRPiece
    Slide baseSlide Base S55C2
    Inclined pin holderInclined PinHolderSCM4401
    Slide plateSlide Plate * CAC304+Solid lubricant2
    Parallel KeyKey S45C1
    StopperStopper SS4002
    * High strength brass casting class 4 (Old JIS: HBsC4)
