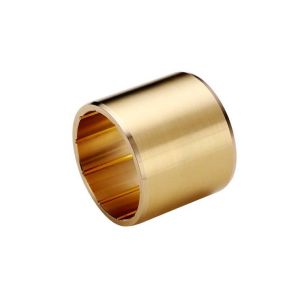

Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based

Zhejiang In-way Precision Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based from wholesalers

    Buy cheap Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based from wholesalers
    • Buy cheap Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based from wholesalers

    Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based

    Ask Lasest Price
    Brand Name : INWAY
    Model Number : INW-201
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 tons/month
    Delivery Time : 5 work days or based on quantity
    • Product Details
    • Company Profile

    Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based

    Small Brass Bushings CuAl10Fe5Ni5 Straight Oil Groove Copper Based


    Gerneral Technical Inforamtion :


    EN 1982 CC333G

    CuAl10Fe5Ni5-C

    • Copper based alloy with aluminium as principal elements and others such as iron and nickel.
    • Extremely hard and tough material with high static and dynamic resistance, sea water, corrosion and erosion resistance. Good performance at high temperature.
    • The closest international standard is the ASTM B505 C95500

    Chemical composition
    % min.% máx
    Al8,510,5
    Cu76,083,0
    Fe4,05,5
    Mn3,0
    Ni4,06,0
    Bi0,01
    Cr0,05
    Mg0,05
    Pb0,03
    Si0,01
    Sn0,01
    Zn0,50

    Mechanical properties (Minimum values)
    Proceso de moldeo y designaciónContinuous (GC)1Centrifugal (GZ)
    Tensile Strength
    Rm (MPa)
    650650
    Yield Point 0,2%
    Rp0,2 (MPa)
    280280
    Elongation 5D
    A (%)
    1313
    HBW (10-1000)150150

    Physical properties
    Density
    kg/dm3
    7,6
    Specific Heat
    j/g. k
    0,418
    Thermal Expansion
    10-6 k
    17 a 19
    Thermal Conductivity
    W/m. ºk
    60
    Electrical Conductivity
    m / (Ohm.mm2)
    4 a 6

    Fabrication Properties


    INW-62 Carsting Alloy Bronze applied with new and improved cooper alloys manufactured in our own foundry is what we see to be one of the key foundations of our compa­ny's success story. We cooper­ate closely with institutes of universities, research institutes and cus tomers to tailor the performance of our products to the application requirements


    4. Flanged bushes


    5. Thrust washers


    6. Sliding plates


    7. We accept of the available datasheet with detaied information about metaial characteristics adn design information .
